Key features
Heat Auto Clean
Auto Clean function to dissolve oil from blower, dissolved oil will be collected in an oil cup for easy cleaning.

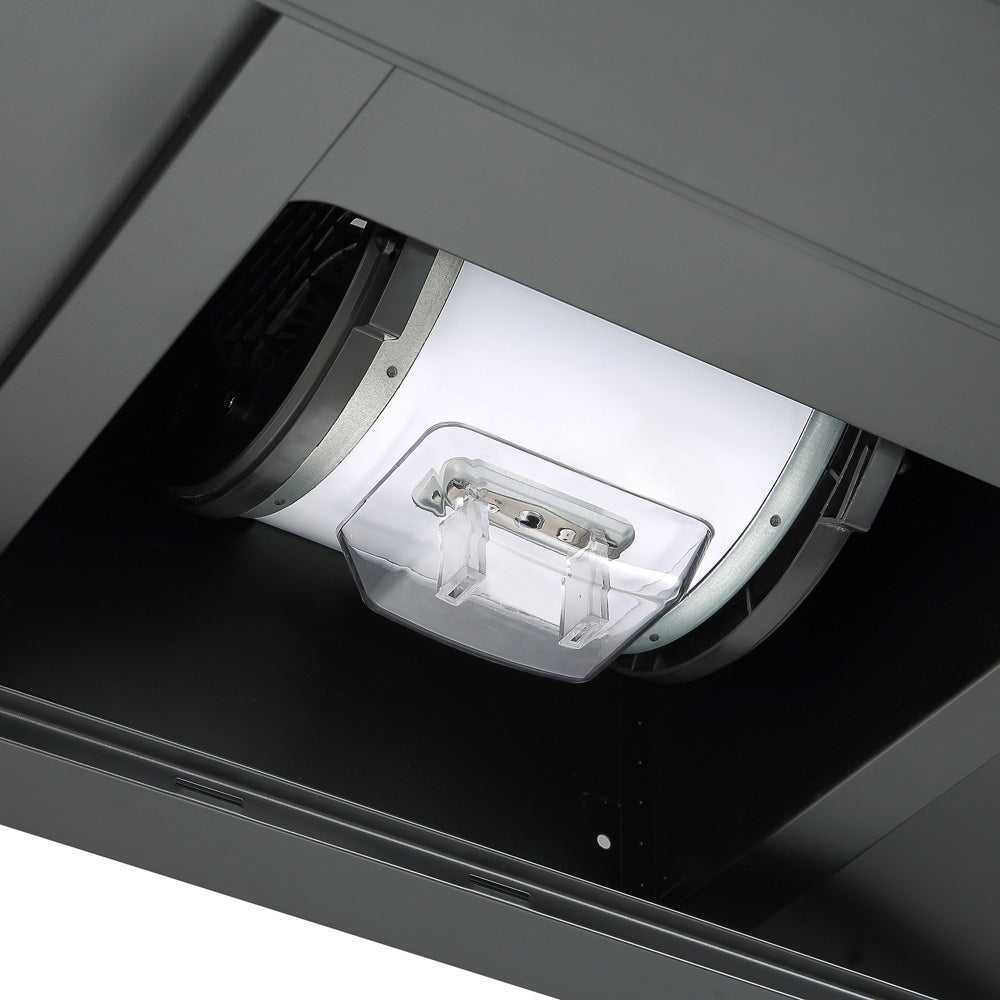

Invisible Oil Cup
Seamless hidden oil cup design to keep elegant look.
High Extraction Power
Up to 1200m3/hr extraction power to ensure air is purified, ridding unwanted smokes and odours effectively.
Delay Timer
Extend hood operating for 9 mins after cooking to remove remaining odours after cooking thoroughly.
Compact Motor Box
Compact motor box size to fit in most of the kitchen cabinet.
Warranty
5 Year warranty on parts and labour.
Specifications
| Colour/Finish | Body - Black, Panel - Black glass |
| Control | Touch Control |
| Material | Black painted cold plate |
| Filter Type | Baffle Filter, Carbon filter (optional accessory) |
| Lighting | LED 1W x 2 |
| Weight | 16Kg |
| Product Dimension | W 900mm x H 450-830mm x D 505mm |
| Operation | Extraction or Recirculation |
| Max. Extraction | 1200 m/hr |
| No. of Motors | 1 |
| No. of Speeds | 3 |
| Noise Level | 68.7dBA - 73.5dBA |
| Functions | Heat Auto Clean, Delay Off (9 mins) |
| Energy Consumption | 143.4kWh/annum |
| Total Power | 322W |
| Motor Power | 320W |
| Accessories | Oil Cup, Carbon Filter (optional for purchase) |
| Voltage (V) Frequency (Hz) | 220-240V/ 50Hz |
| Socket/ Fuse Spur Unit | SAA plug & cord (for OC); BS plug with safety mark (for SG/HK) |
| Diameter of air duct | 150mm |
| Cord Length | 180cm |
| Motor Box Dimensions | W 303mm x H 259mm x D 275mm |
| Package Dimensions | W 955mm x H 465mm x D 600mm |
| Gross Weight | 20.4kg (w/o filter); 21.1kg (w/ filter) |
| Net Weight | 16.0kg (w/o filter); 16.5kg (w/ filter) |
| Place of Manufacture | Asia |
